Features:
- Gas R32
- High Ambient temp. up to 52 C
- Long Life Filter
- Self Diaganostic
- Selectable ESP setting
- ET Control (Hi Static Only)
- Auto Restart
- Internal Dry Mode
- Longer Piping
- Improved Energy Efficiency
- Blue Fin Condenser
Concealed Ducted PEY-ZM18
Concealed Ducted PEY-ZM18

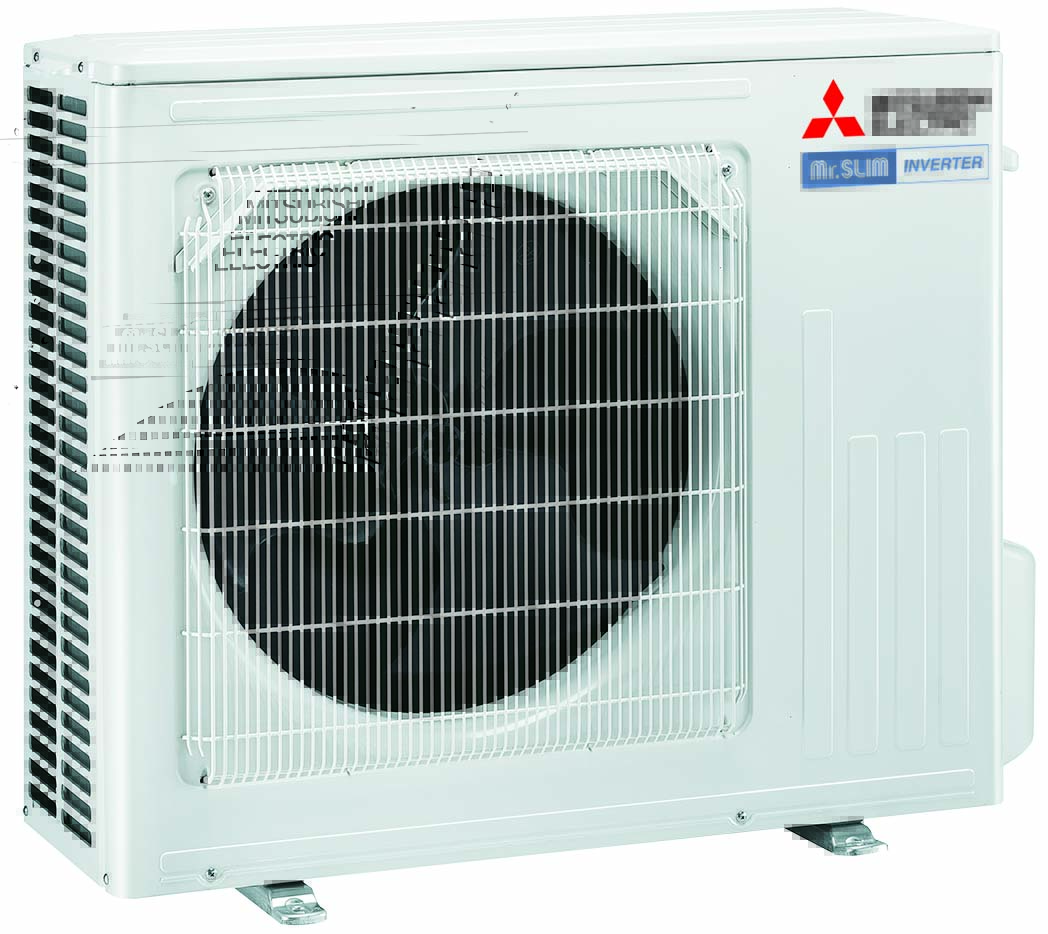

PEY-ZM18/SUY-ZM18
Specification
Model
PEY-ZM18/SUY-ZM18
Cooling Capacity (kW)
5.31
Cooling Capacity Class (TR)
1.50 TON
Cooling Capacity (BTU/hr)
18118
Air Flow Rate (CFM)
600
Air Flow Rate (L/S)
283
Dimensions in mm (H x W x D) indoor
250X900X732
Dimensions in mm (H x W x D) outdoor
714X800X285
Refrigerant
R32
Net Weight (Indoor) (kg)
26
Net Weight (Outdoor) (kg)
38
Indoor Noise level dB(A)
36
Outdoor Noise level dB(A)
51
Gas Pipe Size (in)
1/2
Liquid Pipe Size (in)
1/4
Compressor Type
Inverter Rotary
Remote Control Type
Wired
